U7002 Long 2-in-1 Urinal Inlet and Guided Flush Outlet Fitting

    PRODUCT DESCRIPTION

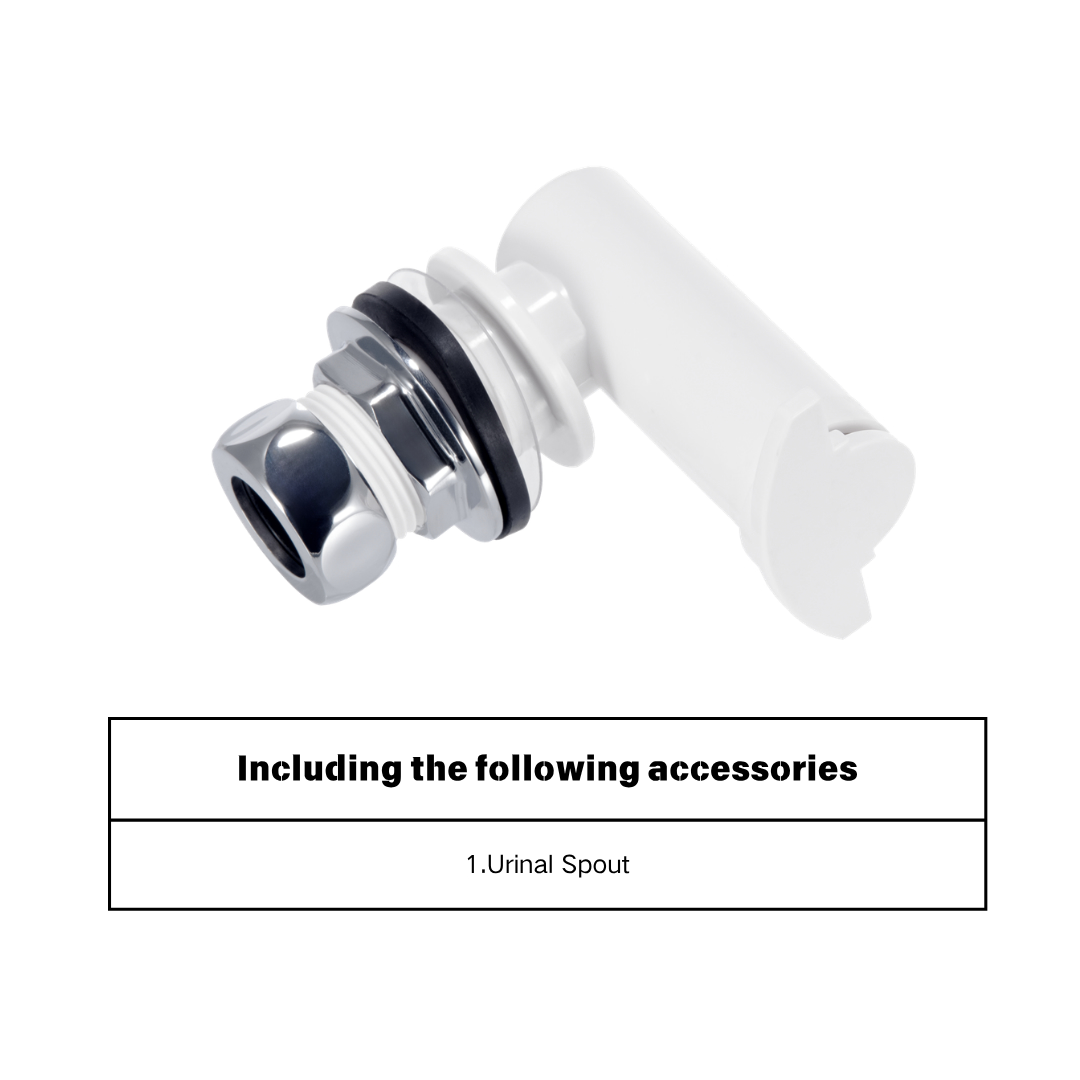

Product Name: U7002 Long Urinal Inlet & Guided Flush Outlet Fitting

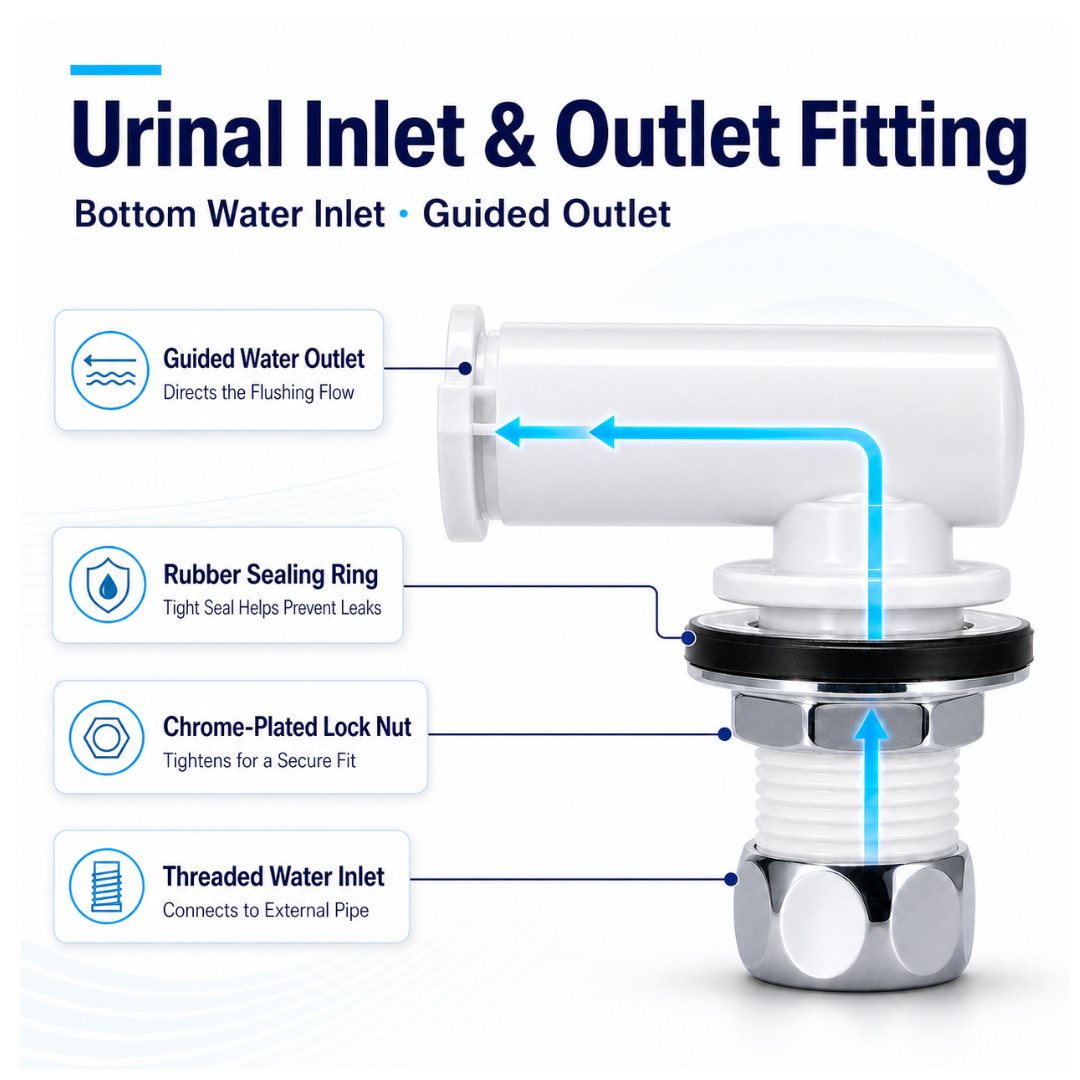

Integrated Inlet-to-Outlet Water Path

The U7002 receives water through its 15/16-16 NPSM threaded inlet, channels it through the elbow-shaped body and releases it through the guided outlet. For buyers specifying a commercial urinal inlet fitting, this 2-in-1 construction combines the supply connection and flush-water guide in one component.

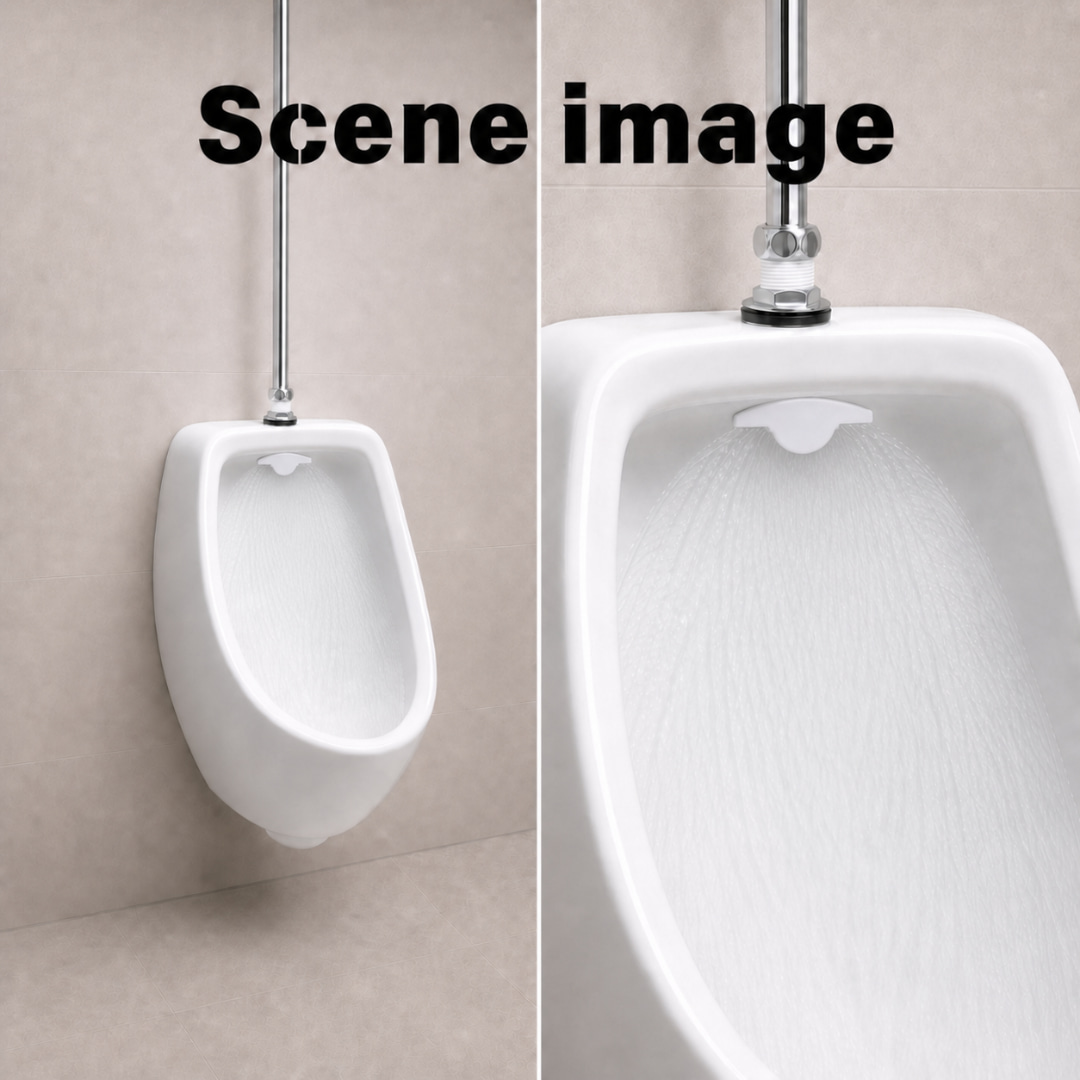

Guided Flushing for Compatible Urinals

The wide internal outlet directs the flushing flow toward the bowl surface. This makes the fitting a practical public restroom urinal flush outlet for compatible wall-mounted urinals where controlled water direction and a compact connection are required.

Sealing and Retention Components

A black rubber sealing ring helps form a tight contact around the mounting area, while the chrome-plated lock nut tightens the assembly into position. As a urinal inlet fitting for plumbing projects, the design keeps the water connection, sealing point and directional outlet together for straightforward product specification.

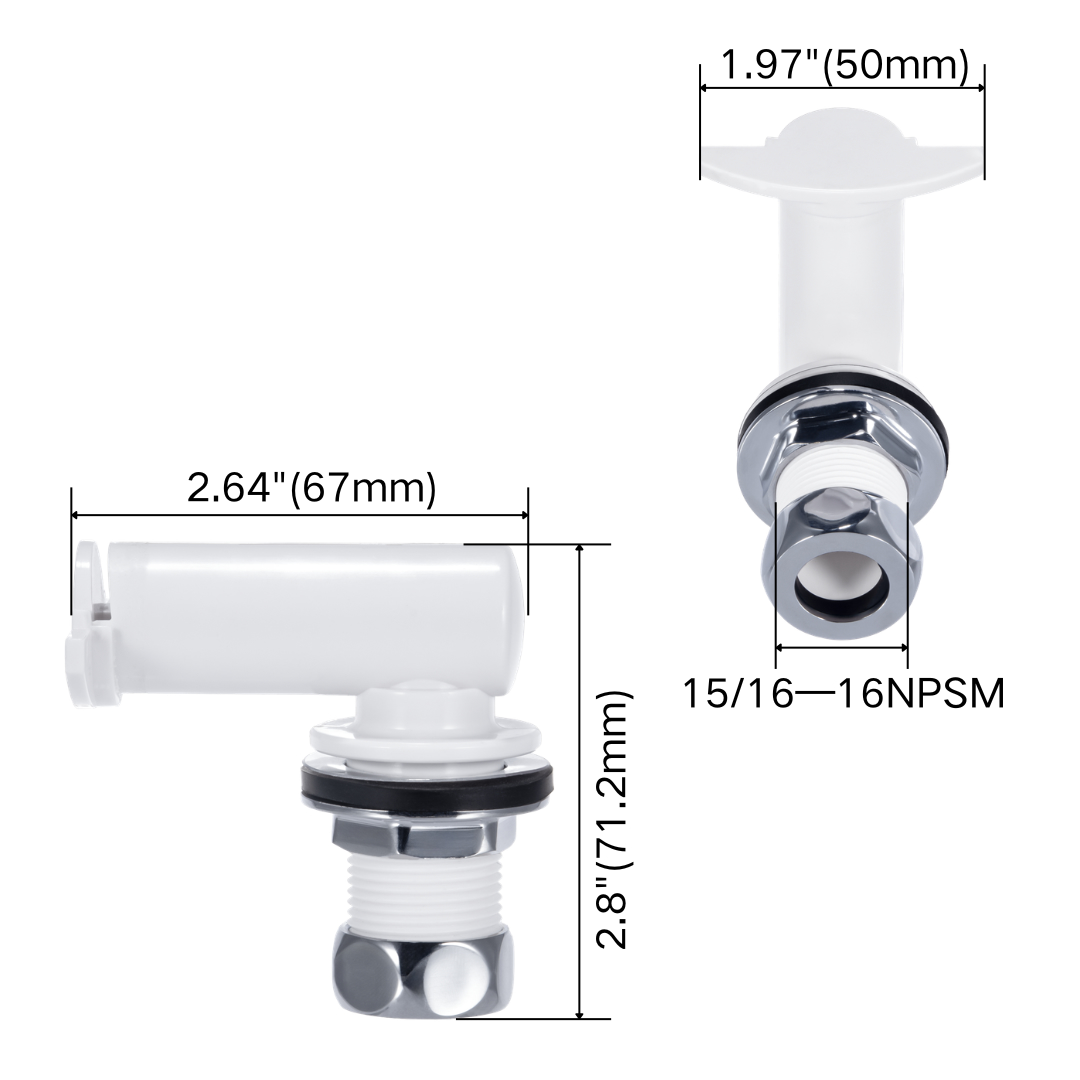

Dimensions and Connection

• Horizontal body length: 2.64 in / 67 mm

• Vertical dimension shown: 2.8 in / 71.2 mm

• Guided outlet width: 1.97 in / 50 mm

• Water inlet thread: 15/16-16 NPSM

When selecting it as a facility maintenance urinal spout fitting, verify the mating thread, ceramic opening, mounting thickness, supply-pipe position and available installation clearance. U7002 should not be treated as universally interchangeable with every urinal inlet.

The long version provides the 67 mm body length shown in the dimension drawing. When evaluating this long urinal inlet fitting for restroom renovation, compare the existing fitting and installation space with all four stated interface dimensions before ordering.

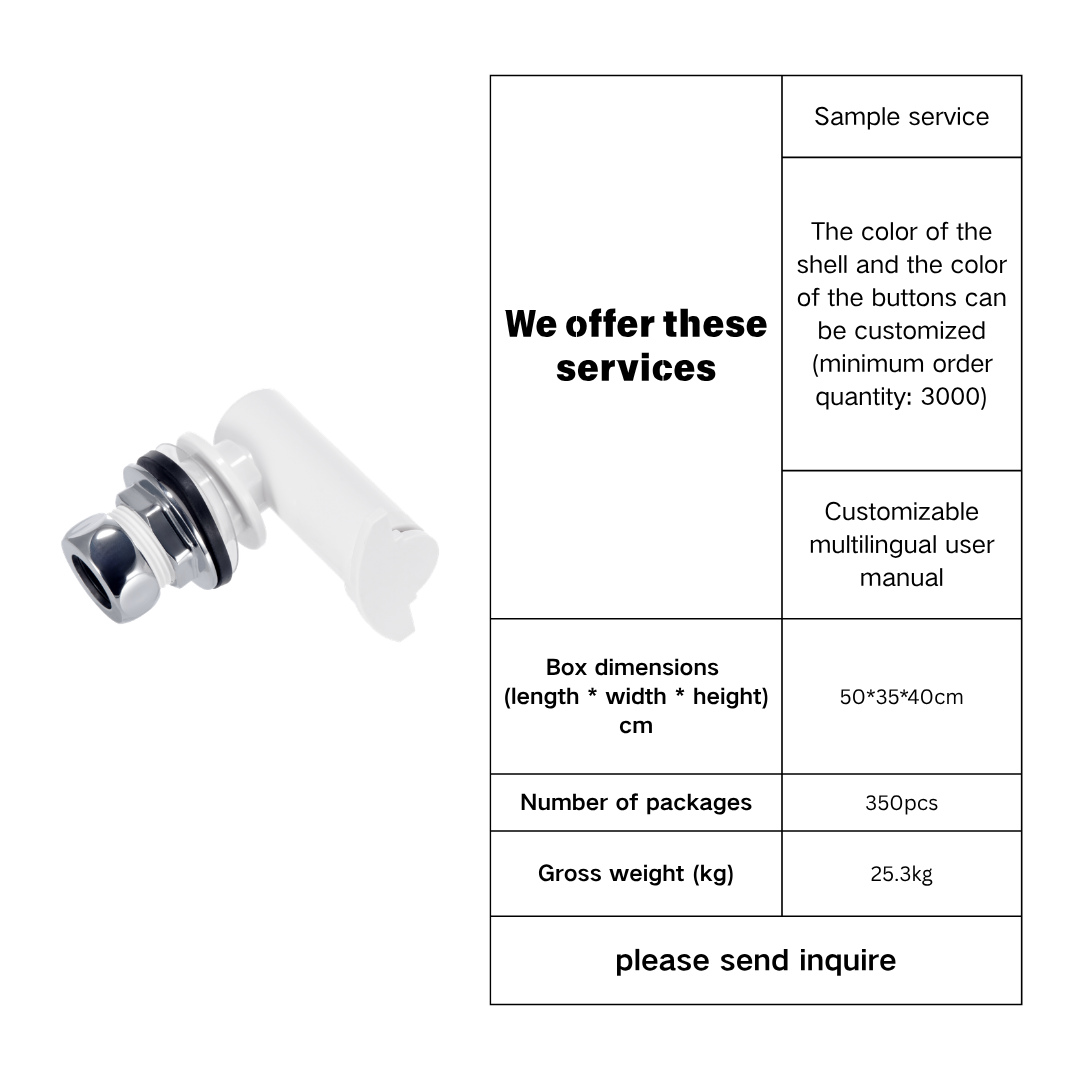

Sampling and Reference Packing

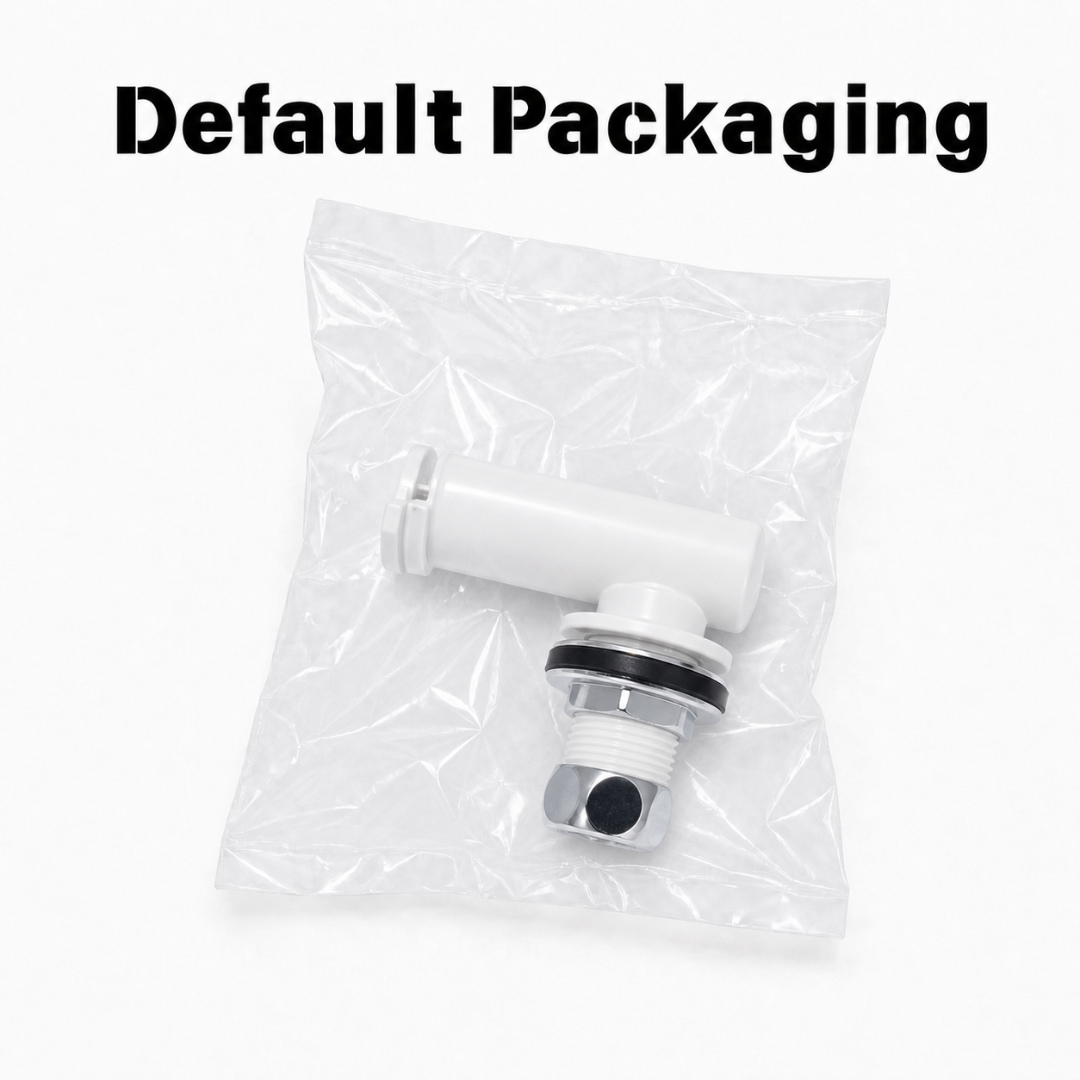

For procurement teams considering a urinal inlet and outlet fitting for bulk orders, the supplied packing information lists a 50 × 35 × 40 cm box, 350 pieces and a gross weight of 25.3 kg. Default individual packaging is shown as a clear poly bag.

Sample service is listed as available. Confirm final carton quantity, weight, packaging method and product fit before placing a production order.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What should be checked before selecting the U7002 fitting?

Confirm the 15/16-16 NPSM mating connection, ceramic opening, mounting thickness, water-supply position and clearance for the 67 mm body. Matching the thread alone does not prove complete installation compatibility.

How does the guided outlet distribute the flush water?

Water enters through the threaded inlet, passes through the elbow-shaped body and exits through the 50 mm guided outlet. The outlet directs the flushing flow toward the urinal bowl instead of functioning as an unrestricted open connection.

Are samples and standard packaging available?

The supplied information lists sample service and shows individual clear poly bag packaging. Reference bulk packing is stated as 350 pieces in a 50 × 35 × 40 cm box with a gross weight of 25.3 kg. Confirm the final packing specification before ordering.

    WHY CHOOSE US?

1.Market Experience

Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.

2.Quality Guarantee

We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.

3.R&D Ability

We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.

4.Customer Support

We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
