U7005 Urinal Waste Outlet Connector with Urinal-Mounted Expansion Fixings

    PRODUCT DESCRIPTION

Product Name: U7005 Urinal Waste Outlet Connector with Urinal-Mounted Expansion Fixings

Fixed to the Urinal—Not Anchored Inside the Wall

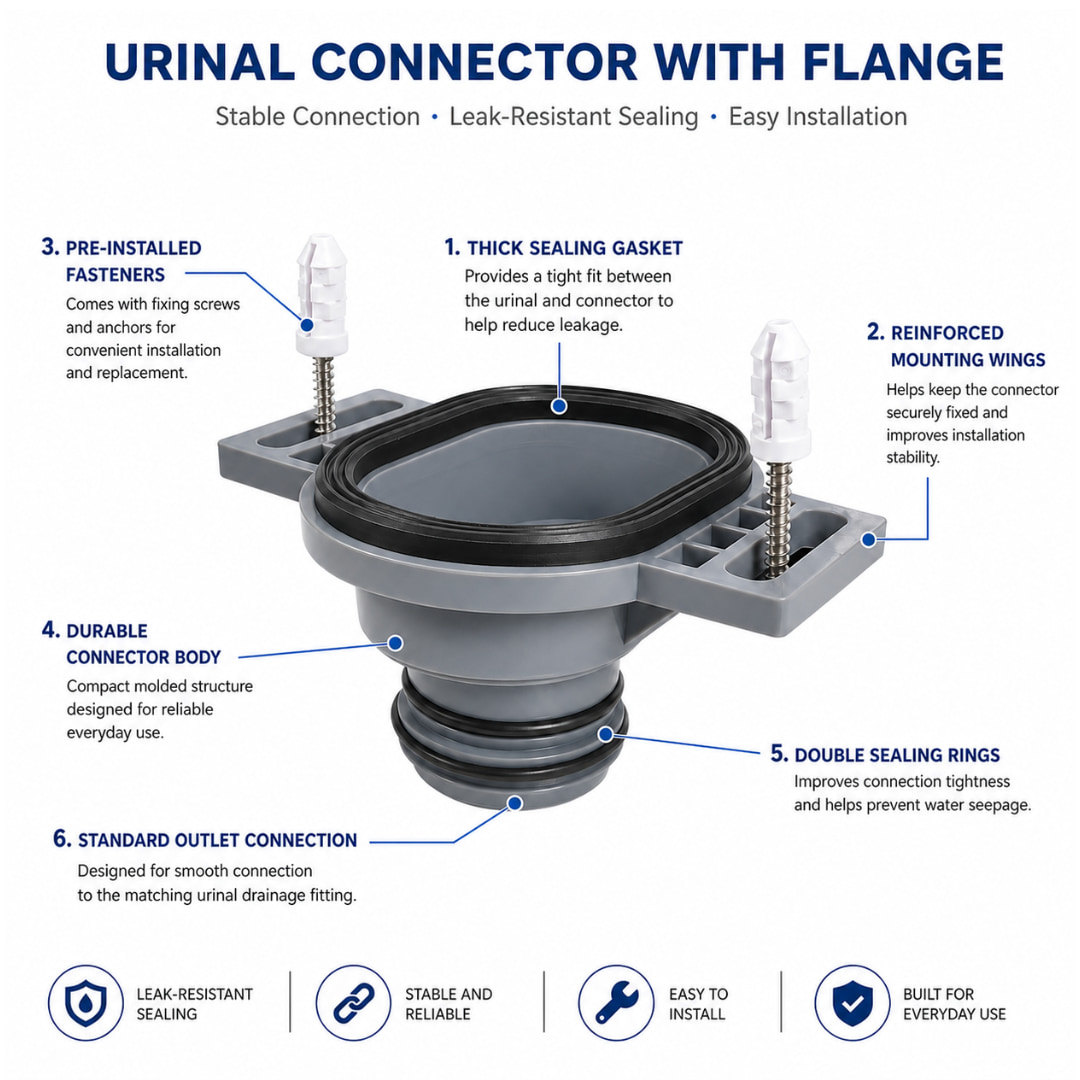

The two plastic expansion anchors are inserted into the prepared fixing holes on the urinal body. Tightening the supplied countersunk screws secures the connector’s side wings to the fixture. The expansion anchors are therefore part of the urinal-side fixing system; they are not intended to be driven into the bathroom wall.

The elongated mounting slots provide positioning allowance during alignment. This makes the U7005 a practical commercial washroom urinal outlet connector when the urinal hole layout and connector dimensions match.

Sealed Waste Connection

A thick oval gasket sits around the upper opening to form the sealing interface between the urinal outlet and the connector body. The lower connection incorporates two sealing rings that help maintain contact with the matching waste fitting and reduce the risk of seepage.

The internal passage transfers discharge from the urinal outlet into the bathroom waste pipe. For contractors working on compatible fixtures, the product can be evaluated as a urinal waste connector for new restroom installations. It can also be considered as a urinal drain connector for replacement maintenance after the original interfaces have been measured or compared with a sample.

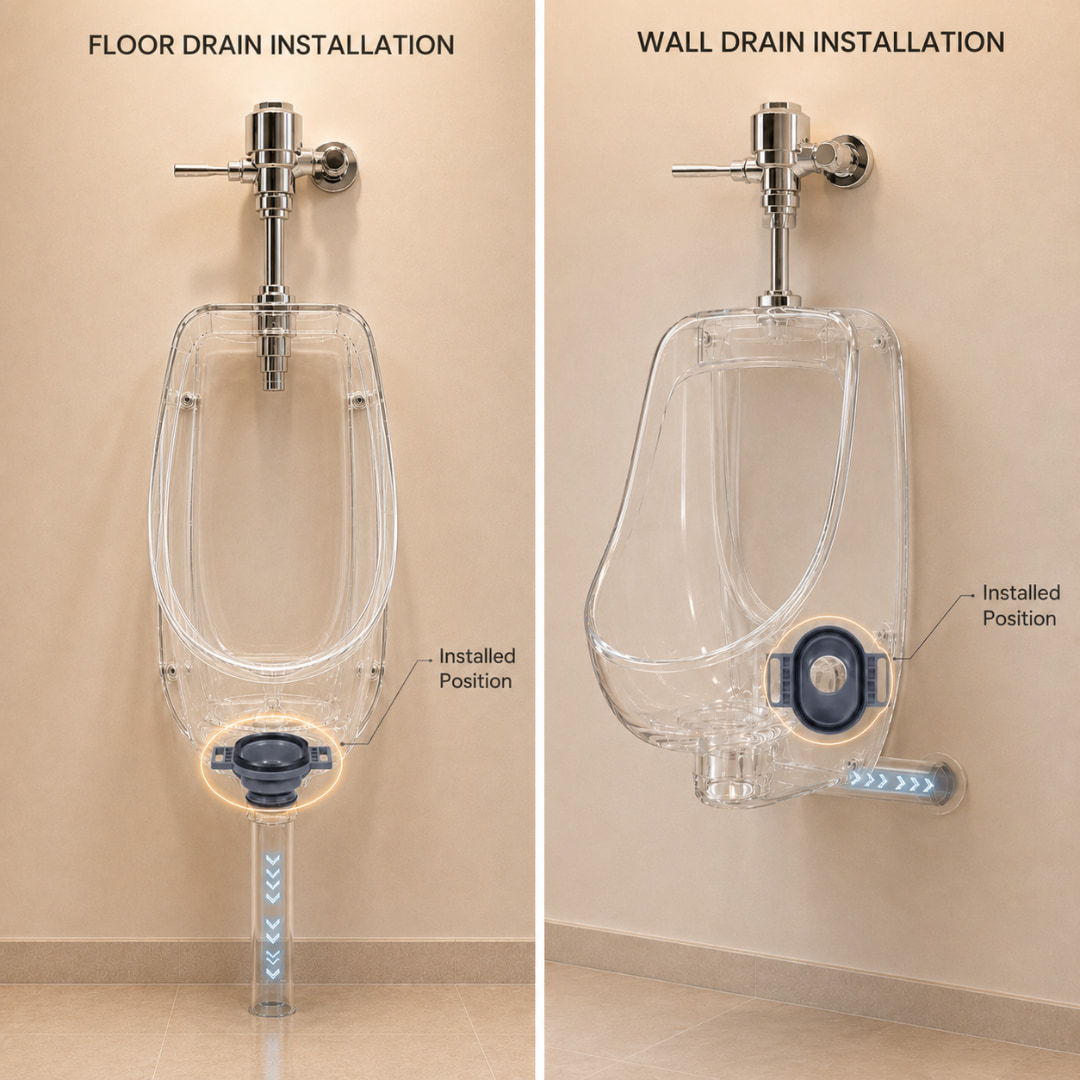

Floor- and Wall-Directed Drainage Layouts

The application illustration presents both vertical and rear-directed waste arrangements. In a matching vertical layout, the U7005 may serve as a floor-outlet urinal waste connector. In a compatible rear-discharge layout, it may serve as a wall-outlet urinal waste connector.

These descriptions refer to the direction of the building waste pipe. In both cases, the connector itself remains secured to the prepared holes on the urinal rather than being anchored into the wall or floor.

Included Components

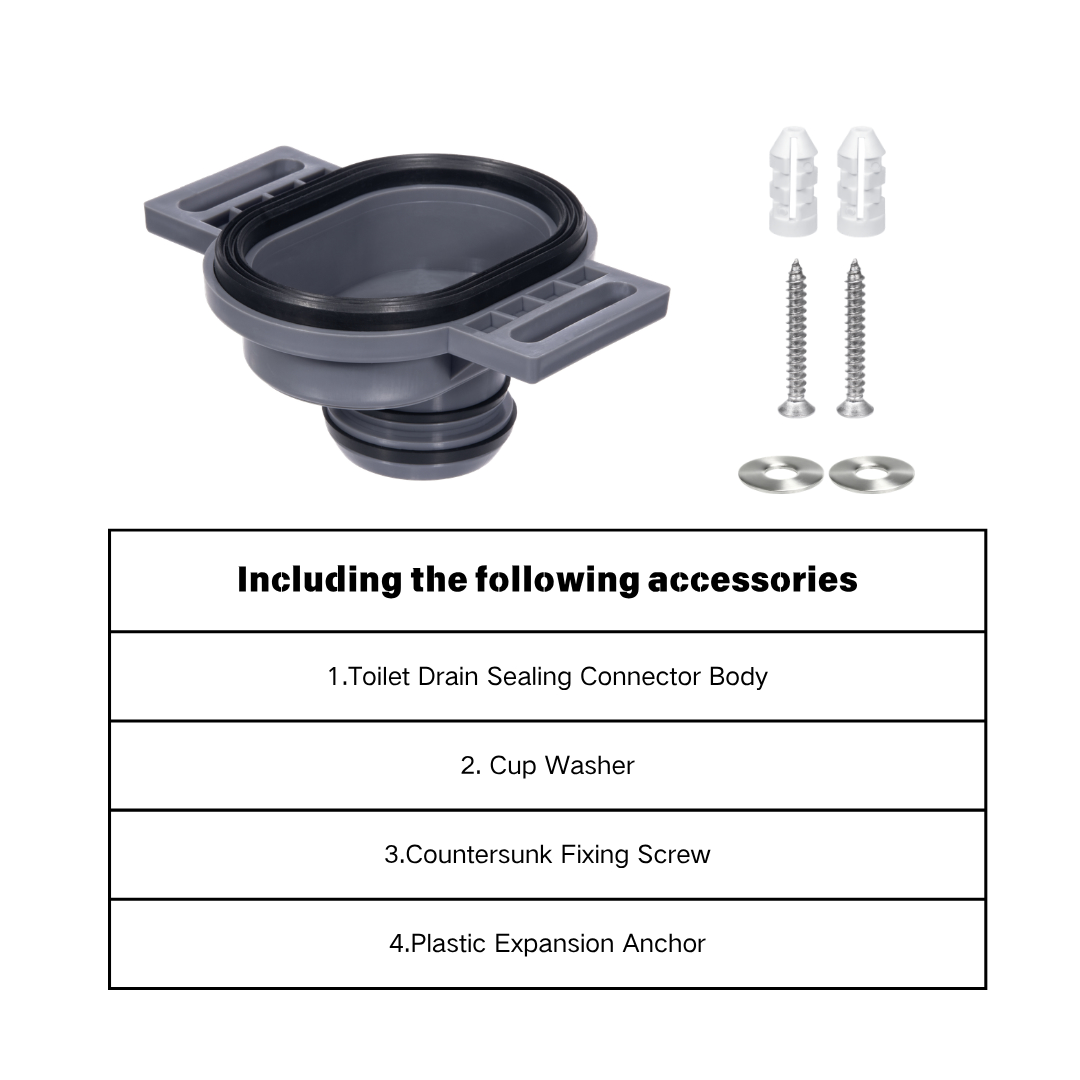

Each pictured kit contains:

• 1 U7005 urinal connector body

• 2 plastic expansion anchors

• 2 countersunk fixing screws

• 2 cup washers

The slotted wings, anchors, screws and washers work together as the urinal-side fixing assembly.

Reference Dimensions

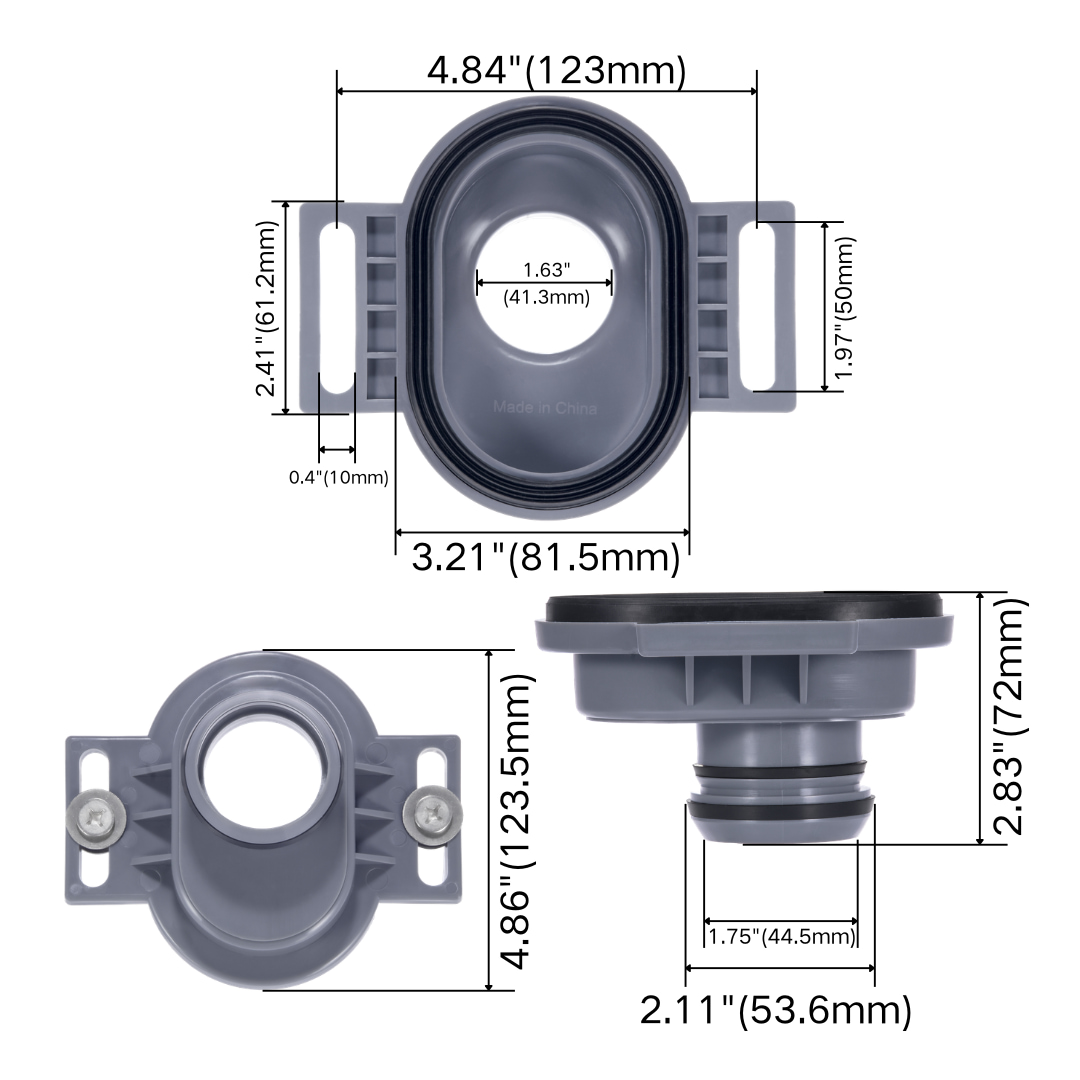

Connector dimensions shown in the supplied drawings:

• Maximum wing-to-wing span: 123 mm

• Overall body length: 123.5 mm

• Oval body width: 81.5 mm

• Mounting-wing height: 61.2 mm

• Central opening: 41.3 mm

• Mounting slot: 50 × 10 mm

• Overall height: 72 mm

• Lower connector body: 44.5 mm

• Maximum width across the lower sealing section: 53.6 mm

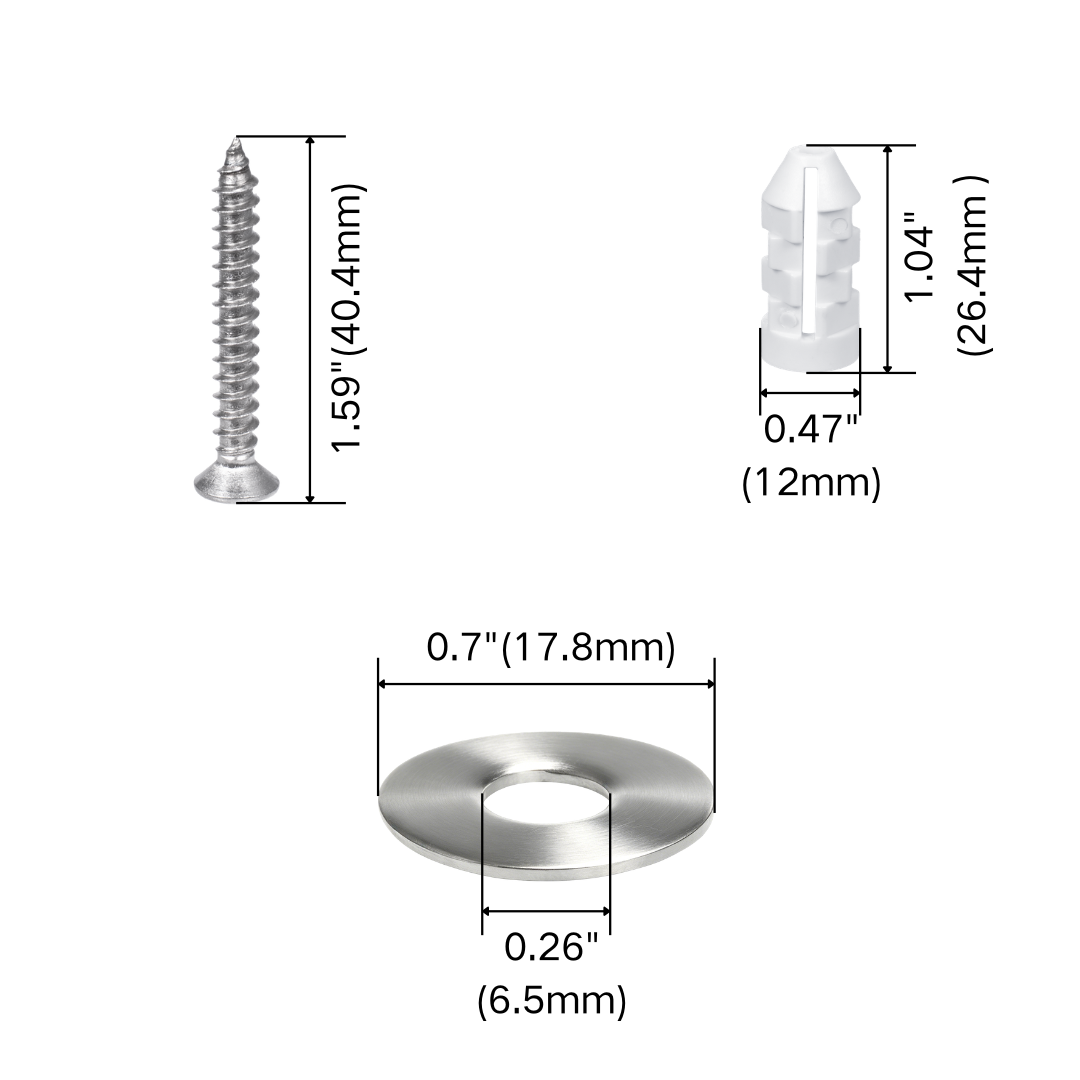

Fixing-hardware dimensions:

• Countersunk screw length: 40.4 mm

• Plastic anchor: 12 mm diameter × 26.4 mm length

• Cup washer: 17.8 mm outside diameter with 6.5 mm centre opening

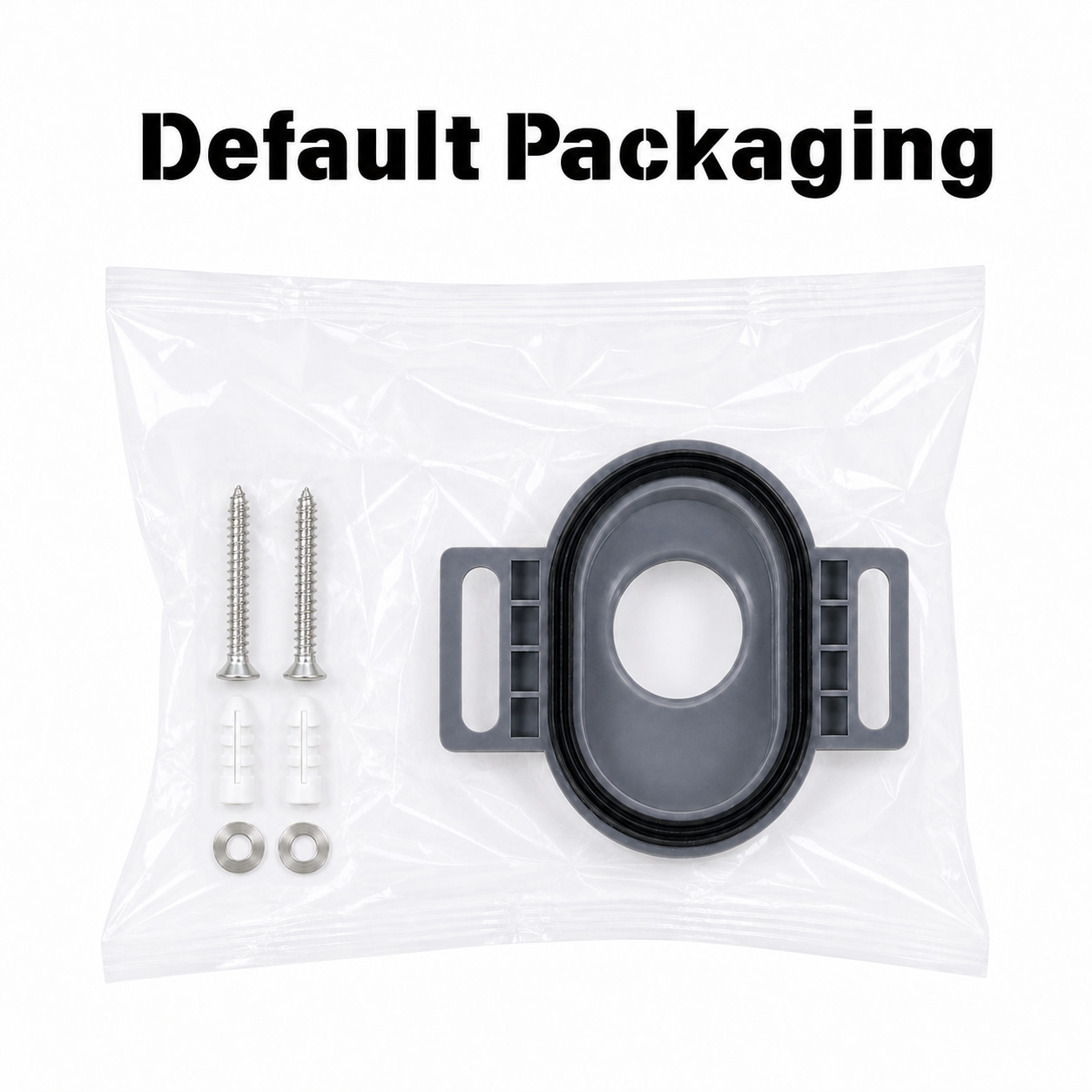

Packaging Reference

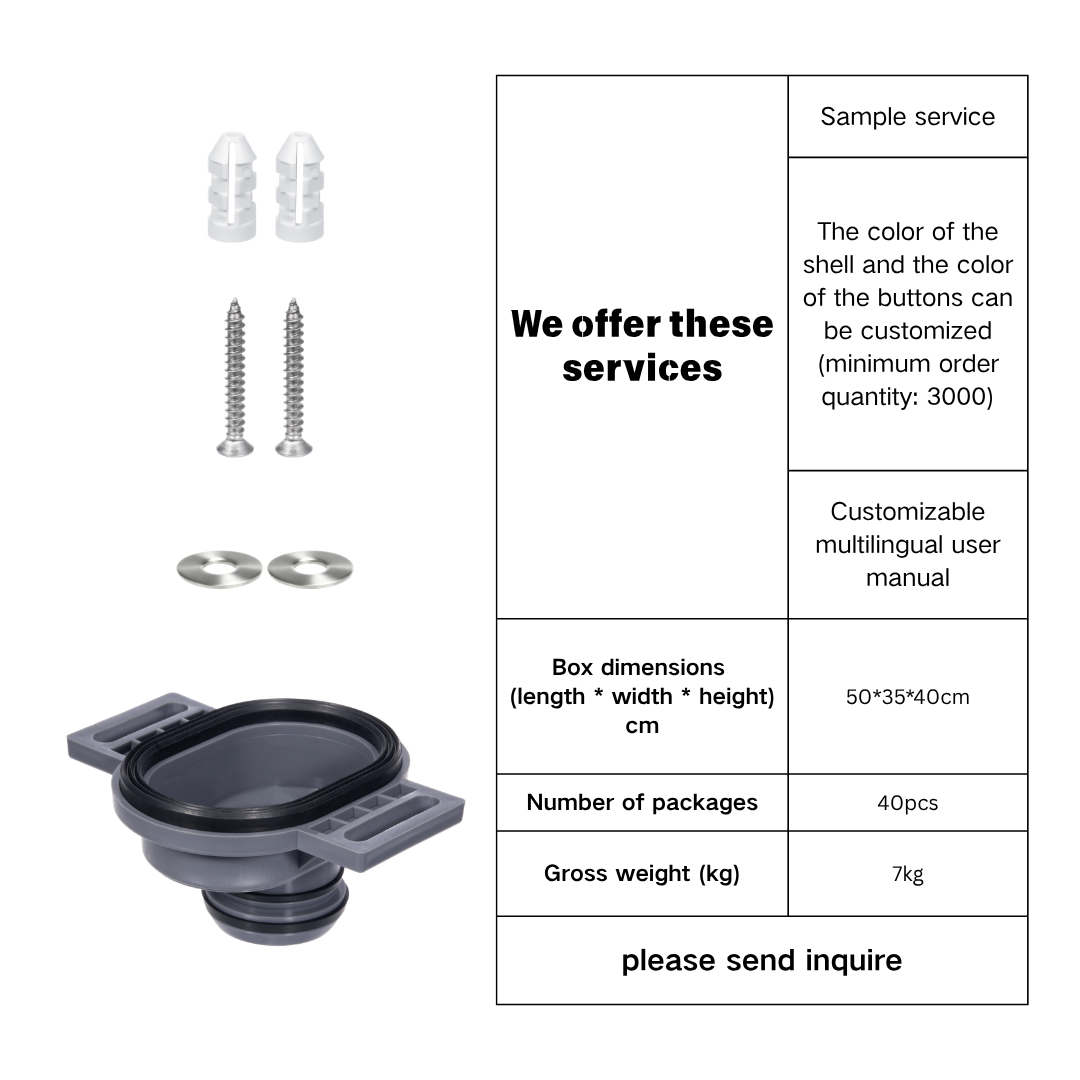

The default packaging shown is one connector kit in a clear plastic bag. Reference carton information is:

• 40 packed units per carton

• Carton size: 50 × 35 × 40 cm

• Gross weight: 7 kg

• Sample service is indicated in the supplied product material

Market and Project Applications

The U7005 has previously been supplied mainly for Korean-market applications, but its potential use is determined by the physical interfaces rather than by country. It can therefore be evaluated as a urinal flange connector for sanitary ware projects in other regions, including compatible replacement work and new commercial washroom installations.

Before ordering, confirm the urinal’s fixing-hole diameter and spacing, outlet opening, sealing surface, lower pipe diameter, discharge direction, insertion depth and available installation clearance. A drawing or physical sample is recommended for final fit verification. The product should not be described as universal.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
