Urinal Flush Spreader with 15/16-16 NPSM Thread for Wall-Hung Ceramic Urinals

    PRODUCT DESCRIPTION

Product Name: Urinal Flush Spreader with 15/16-16 NPSM Thread for Wall-Hung Ceramic Urinals

Urinal Flush Spreader for Reliable Water Distribution

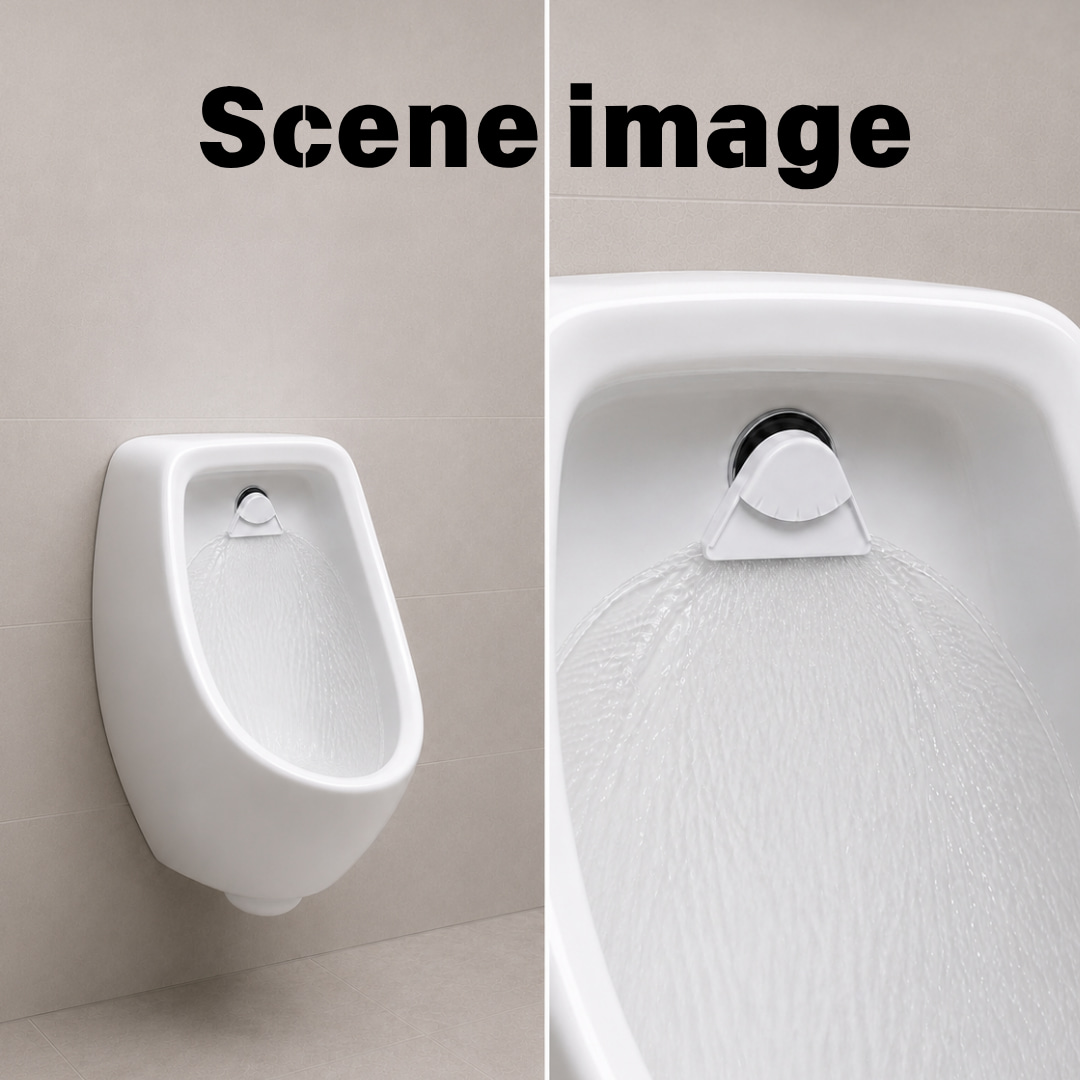

Designed as a flushing water connection and outlet for ceramic urinals, this wall-hung urinal flush spreader directs incoming water through the fan-shaped outlet and distributes it across the inner surface of the urinal for effective rinsing.

Originally developed for Korean urinal applications, the product can also be considered for international OEM and replacement projects when the urinal installation dimensions and connection specifications are compatible.

Secure Threaded Installation

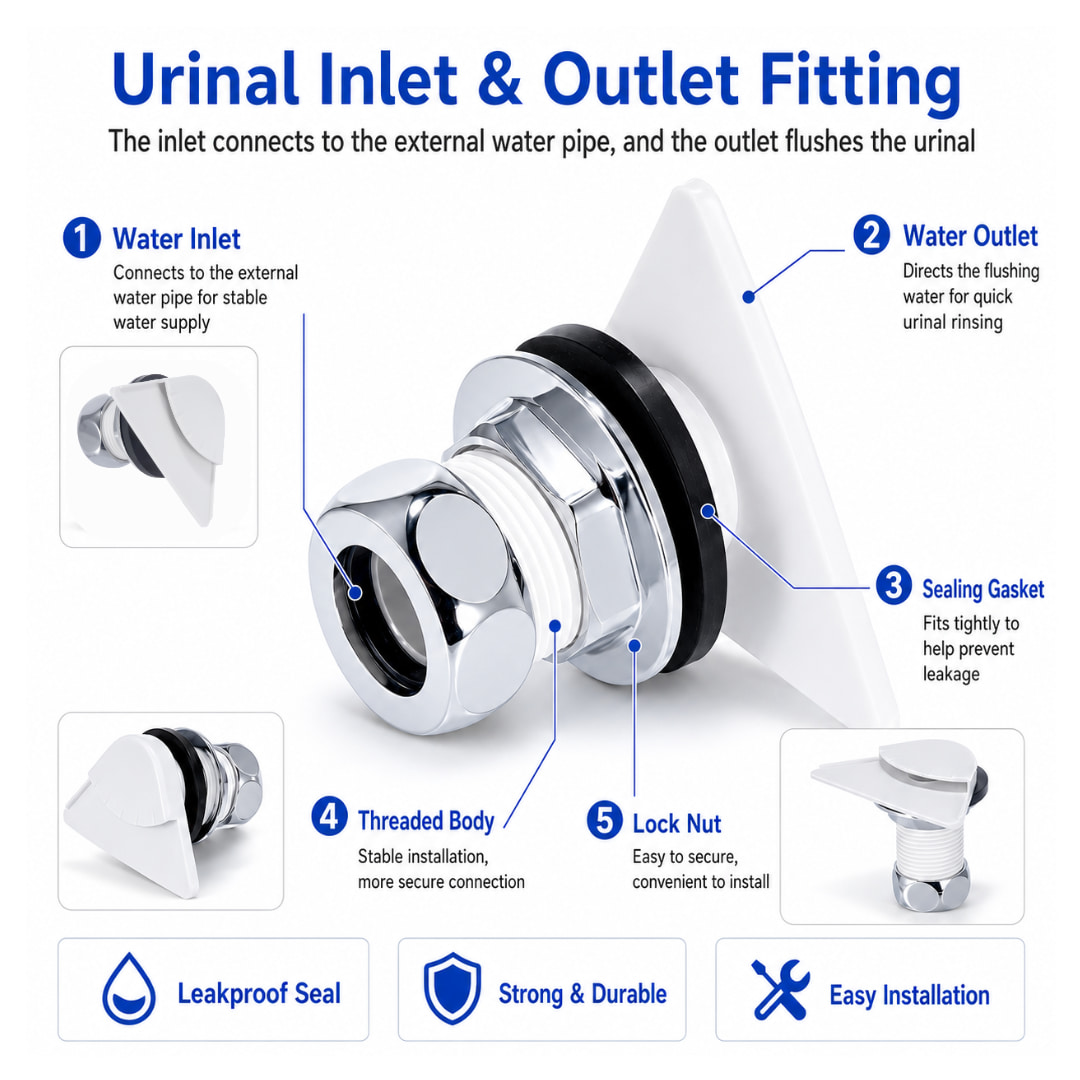

The threaded body, sealing gasket and lock nut form a stable connection with the ceramic urinal. The gasket fits against the installation surface to help reduce the risk of leakage, while the lock nut secures the fitting firmly in position.

For customers sourcing an OEM urinal flush spreader, samples can be used to verify the ceramic mounting hole, connection thread and flushing performance before bulk production.

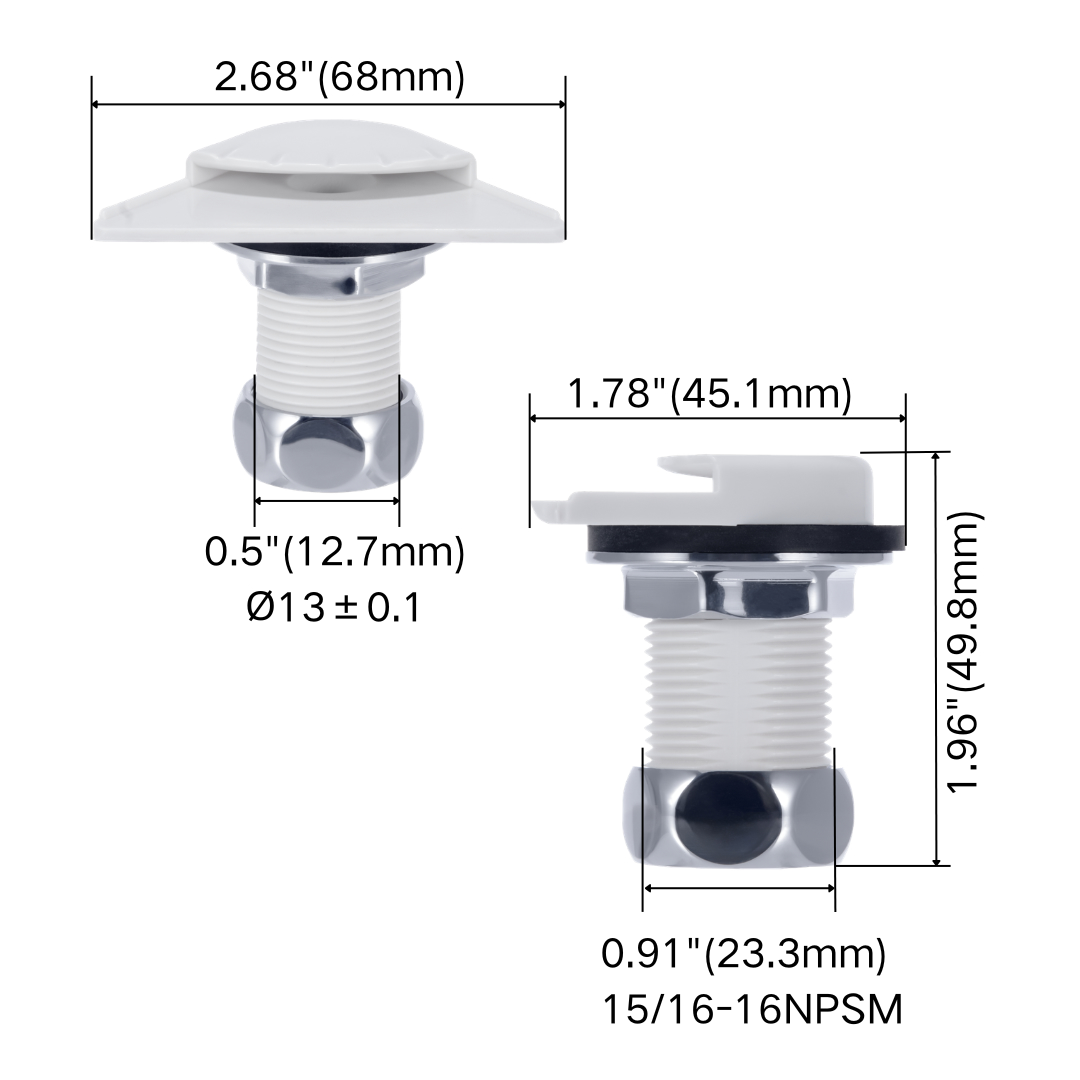

Product Specifications

• Head Width: 68 mm / 2.68"
• Projection Length: 45.1 mm / 1.78"
• Overall Height: 49.8 mm / 1.96"
• Water Passage: Ø13 ± 0.1 mm
• Connection Thread: 15/16-16 NPSM
• Sealing: Rubber sealing gasket
• Installation: Threaded body with lock nut
• Application: Ceramic urinal flushing system

Suitable for OEM and Replacement Markets

As a commercial urinal water spreader, this fitting can be used for sanitary ware production, plumbing replacement projects and commercial restroom maintenance where the specifications match.

Jielin can support customers looking for a wholesale urinal flush spreader for distribution, sanitary ware manufacturing or aftermarket supply. For importers and distributors searching for a stable urinal flush spreader supplier, sample verification is recommended before confirming compatibility with a specific urinal model.

The product is also suitable as a urinal replacement flush spreader for existing installations where the original fitting has become damaged, aged or unavailable.

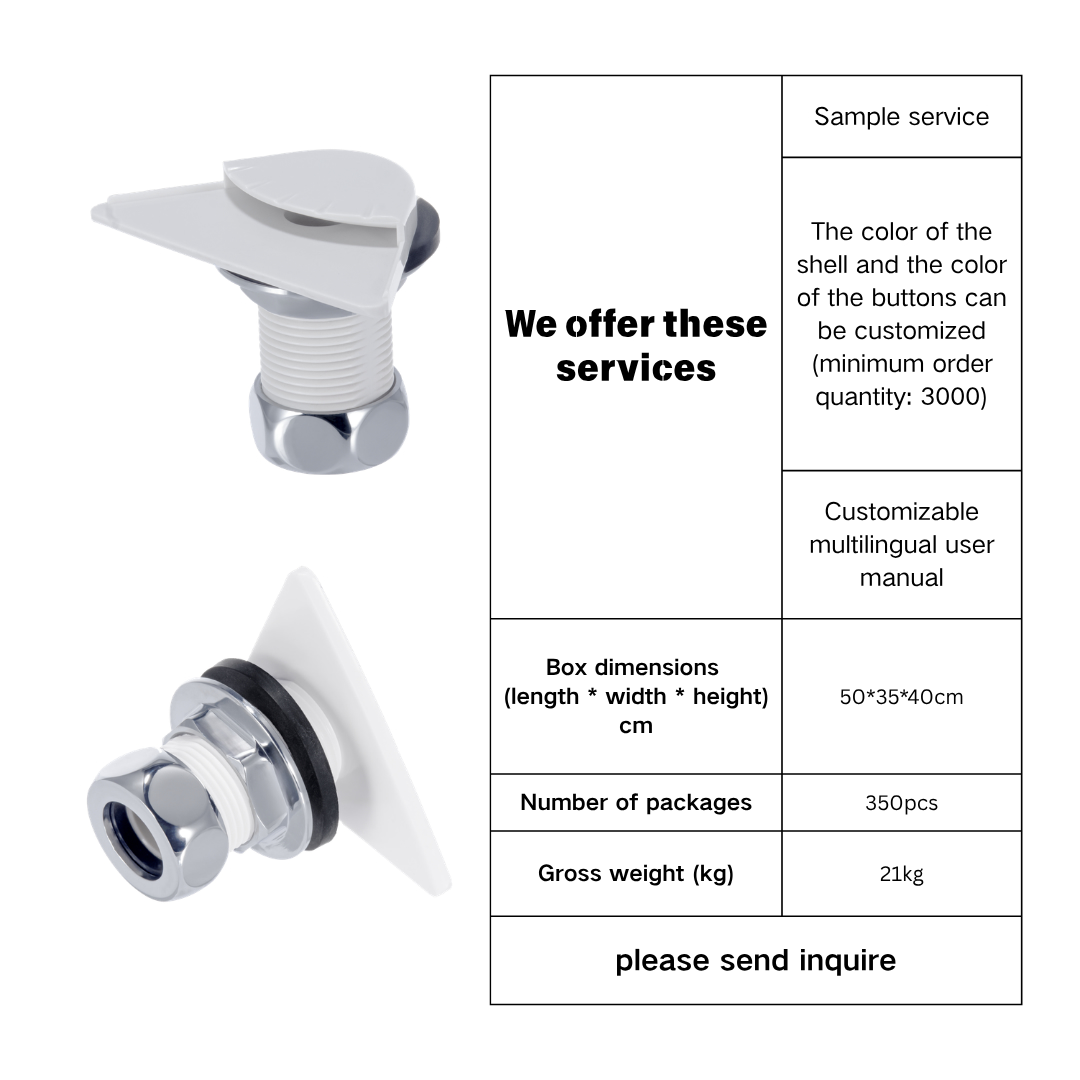

Packing Information

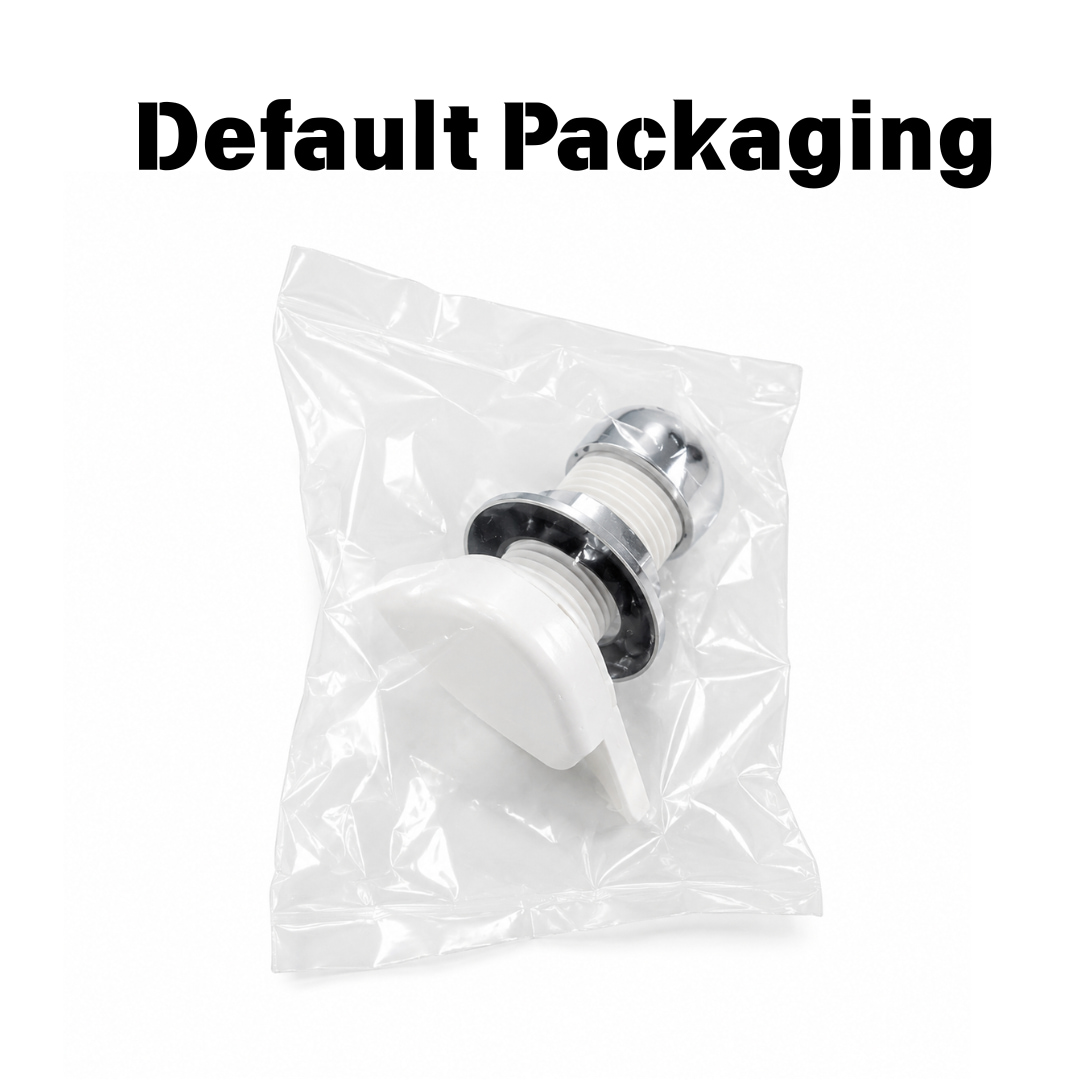

• Packing: Individual plastic bag
• Quantity: 350 pcs/carton
• Carton Size: 50 × 35 × 40 cm
• Gross Weight: 21 kg

For sanitary ware manufacturers, wholesalers and project suppliers requiring an OEM urinal flush spreader, please contact us with your urinal drawing, mounting dimensions or original sample for compatibility evaluation.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What urinals is this flush spreader compatible with?

This product was originally developed for Korean urinal applications. Compatibility mainly depends on the mounting dimensions, ceramic opening and the 15/16-16 NPSM connection specification. For replacement projects, we recommend checking the dimensions or testing a sample before ordering.

What does the urinal flush spreader do?

The fitting connects to the flushing water supply and directs the water through its fan-shaped outlet into the urinal bowl. Its purpose is to spread the flushing water over the ceramic surface for effective rinsing.

Can I use this product as a replacement for an existing urinal fitting?

Yes, provided that the connection thread, mounting hole and installation dimensions match the existing urinal. If you are unsure, you can provide the original fitting, dimensional drawing or urinal model for compatibility checking.
